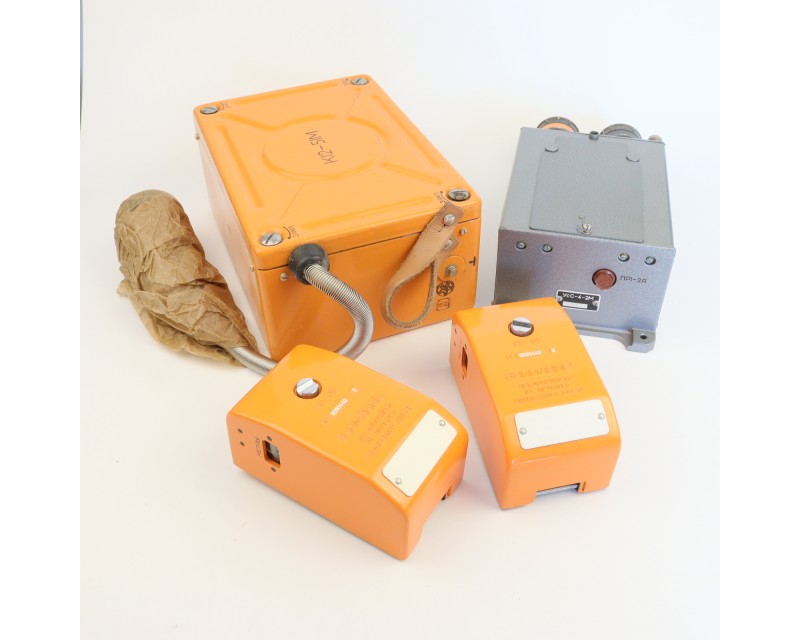

System of automatic registration of flight parameters SARPP-12
Catalog number: САРПП-12
Category: From storage
Operating time: 0
In stock: 1
Description: Automatic registration system of SARPP-12 flight parameters
intended for recording with a light beam on photographic film.
parameters in normal and emergency conditions and preservation
recorded information due to mechanical impact.
The SARPP-12 system is available in three variants:
SARPP-12VM; SARPP-12ГМ;
SARPP-12DM.
SARPP-12VM is installed on aircraft with two engines,
SARPP-12ГМ-on single-engine aircraft,
SARPP-12DM - on helicopters.
The difference between the system options is in the configuration,
differences in registered parameters and location of lines
de-energized vibrators on photographic film

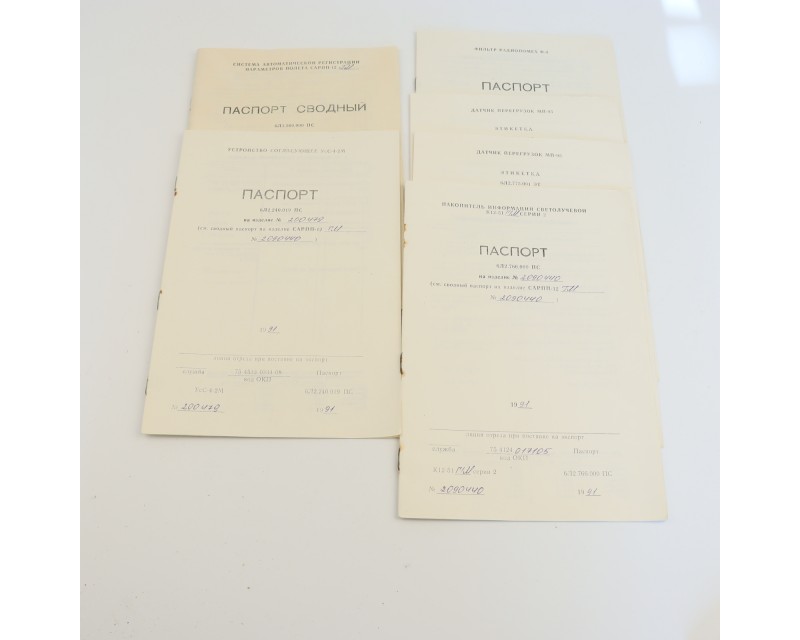

To get access to your passport, please fill out an application
and wait for the consultation of the manager
The SARPP-12V(G) system registers:
and). The statistical pressure corresponding to the flight height is 250 ÷
25,000 meters from
using a pressure sensor type - MDD-Te-1-780.
b). Dynamic pressure corresponding to flight speed
200÷1500 km/h.
using a pressure sensor type MDD-Te-0-1.5.
in). Linear loads:
along the "Y" axis in the range of -3.5÷ +10g.
along the "X" axis in the range of ±l.5g (САРПП-12Г) using sensors of the type
MP-95.
d). Angular movements of the controls using a sensor
type MU-615A.
d). Engine revolutions in the range of 10÷110% with a regular sensor
DTE-1 (DTE-2).
is). Nine signals of one-time commands.
g). Time.
